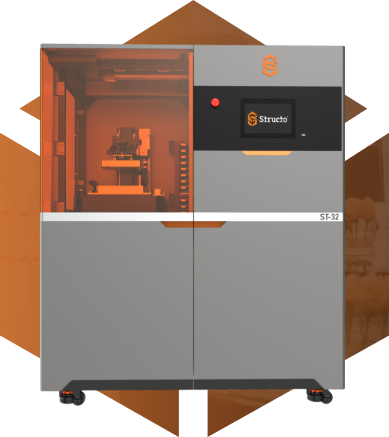

ST-32

A semi-automated 3D printer for round-the-clock production of high volume clear aligner models in dental and orthodontic laboratories.

SAY HELLO TO LIGHTS-OUT MANUFACTURING

With its built-in automation components, the ST-32 enables round-theclock 3D printing of dental appliances without the need of human intervention. Just upload your digital files, add your print jobs to the queue, and return 8 hours later to a magazine of 32 fully printed platforms ready for the next step in of your workflow.

32 Platforms Printed Every 15 Hours

Built-in automation elements enables a workflow where human intervention is only needed once every 15 hours for the ST-32 to continue printing.

Lights-Out Manufacturing

Up To 15 hours Technicianless Cycles

Automated Platform Replacement

Automating Low Value Tasks

Resin Refill & Filtration

Part Traceability

TECHNICAL SPECIFICATIONS

PRINT TECHNOLOGY
Mask Stereolithography (MSLA) 2.0
APPLICATION
Clear Aligner Models
FOOTPRINT (L x W x H)
1600 x 850 x 1800 mm
PRINT AREA SIZE (L x W x H)
222 x 129 x 100 mm
PRINT MAGAZINE CAPACITY
32 x EZrelease Platforms
PRINTING ACCURACY
95% @ 100 microns
Z-DIRECTION LAYER THICKNESS
100, 125 microns
REMOTE PRINT MONITORING
2 MP Wi-Fi Camera
